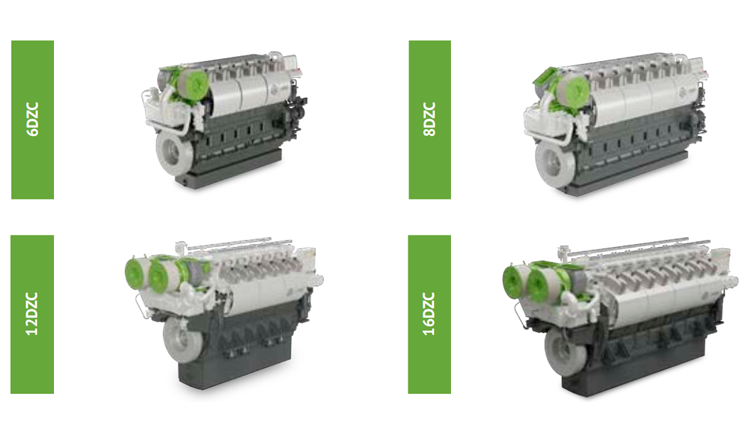

ABC DZC Series Engine
Model |
Cylinders |

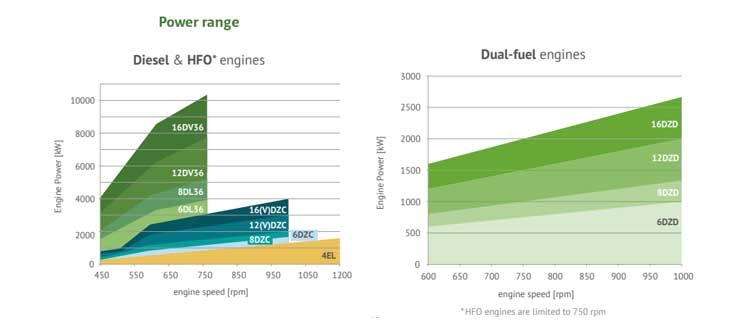

Power Range |
Total Scavenging Volume |
Dry Weight |
Shallow Sump Oil Capacity |
Deep Sump Oil Capacity
|
Engine Water Capacity |
6DZC |
6 |
600-1326KW |
95.7L |
10620KG |
450L |
620L |
210L |
8DZC |
8 |
1400-1768KW |
127.6L |
13905KG |
510L |
650L |
280L |
12DZC |
V12 |
1900-2652KW |
191.5L |
18000KG |
800L |
900L |
500L |
16DZC |
V16 |
2900-3536KW |
255.2L |
21750KG |
1000L |
1000L |
600L |
The ABC engine is the medium-speed four-stroke engine designed specifically for mid-to-high-speed vessels and industrial applications, with power ranges from 600KW to 10,400KW. These engines operate at speeds of 300-1000 rpm and are particularly well-suited for tugboats, dredgers, and other engineering
vessels.The engines have a wide range of applications, including vessel propulsion, land-based power generation, and railway traction. We can provide
comprehensive package services for equipment and spare parts to meet customers' various needs.
Applications:
the ship propulsion system:coastal trade ships, ferry, fishing boats, river boat, tug, work boats, etc.
Power generation systems:industrial generator sets, Marine power generation units.
The train traction system, such as: trolley system.
