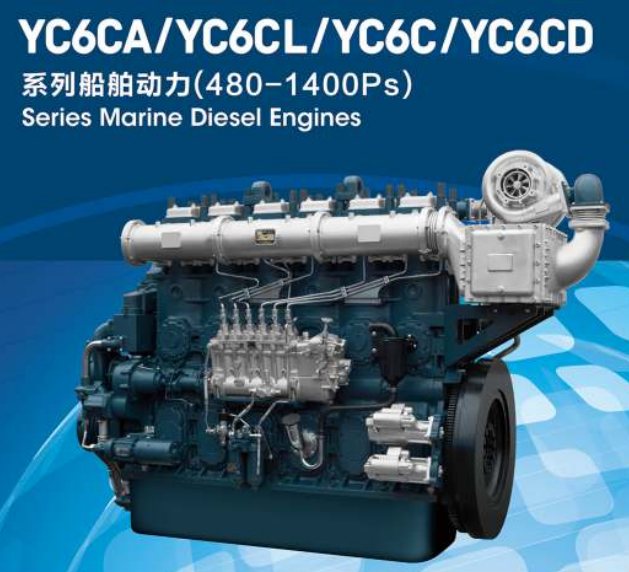

Yuchai YC6C Series Marine Engines
YC6CA/YC6CL/YC6C/YC6CD Series Marine engine are developed for the operating condition of inland river shipping and oceanic fishing boat, with the adoption of advanced technology of Germany, USA, Japan, fully in accordance with the European modern engine development process. It is used as the ideal power for all kinds of marine and 400-700kW auxiliary genset.
Yuchai YC6C Series Marine Engines Technical parameter
|
Model |
YC6CA1400L-C20 |
YC6CL Series |
YC6C Series |
YC6CD Series |
|
Type |
Vertical,Inline,water-cooled,4-stock,Direct injection |
|||
|
Air intake |
Turbocharged &Inter-cooled |
|||
|
Cylinders |
6 cylinders |
6 cylinders |
6 cylinders |
6 cylinders |
|
Continuous |
1029KW/1000RPM |
550-882KW |
390-706KW |
396-551KW |
|
One-hour |
1132KW/1032RPM |
605-970KW |
429-777KW |
435-606KW |
|
Certificate |
ZC,CCS IMO |
|||
|
Net weight |
5480KG |
5380KG |
4700KG |
4200KG |
|
LxWxH(mm) |
2943x1316x2157 |
2900x1329x2574 |
2873x1342x2367 |
2425x998x1834 |
