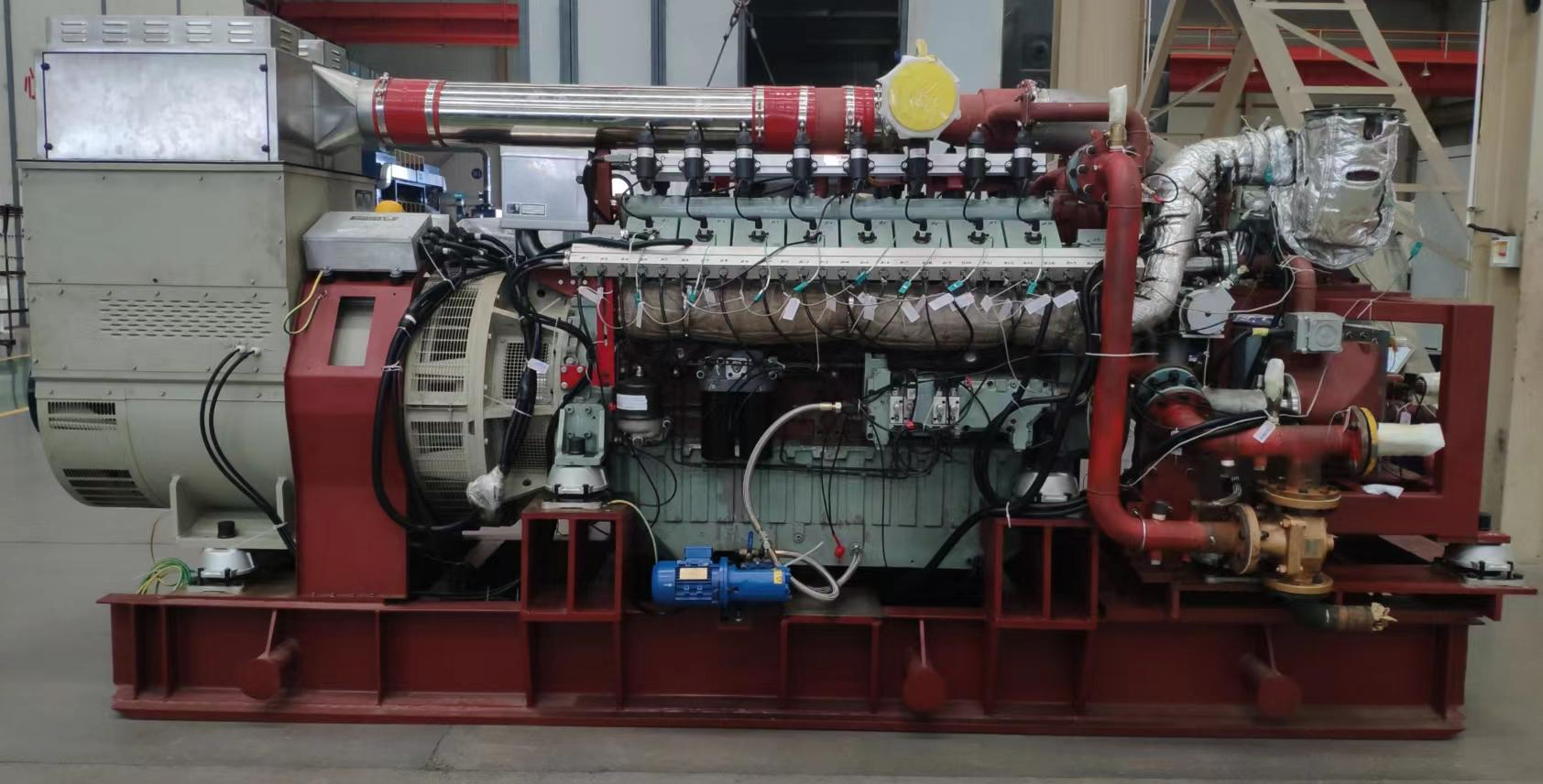

132 series QY16V700GS gas engine/generator set
Engine Parameters
Manufacturer
CSSC
Type
QY16V132
No.of cylinders
16
Type of cylinders
V
Angle of cylinders
60°
Operation mode
Four stroke spark plug ignition
Displacement
L
35.03
Bore /Stroke
mm
132/160
R P M
RPM
1500
Compression ratio
14
Average piston speed
m/s
Average effective pressure
bar
16
Lubricating oil tank volume -min/max
L
98
Oil consumption
g/kWh
<0.1
Maximum allowable exhaust
back pressure
mbar
50
Technical Parameters
100%
75%
50%
Output power
kW
700
525
350
Thermal output
kW
864
676
493
Cooling water heat
kW
280
246
211
Primary air cooling heat
kW
88.5
40.5
-
Secondary air cooling heat
kW
62.8
41.9
26.6
Exhaust gas heat
kW
432.3
347.6
255.9
Energy input
kW
1,700.0
1,300.0
910.0
Efficiencies electrical
%
41.2%
40.4%
38.5%
Efficiencies thermal
%
50.8%
52.0%
54.2%
Efficiencies total
%
92.0%
92.4%
92.7%
