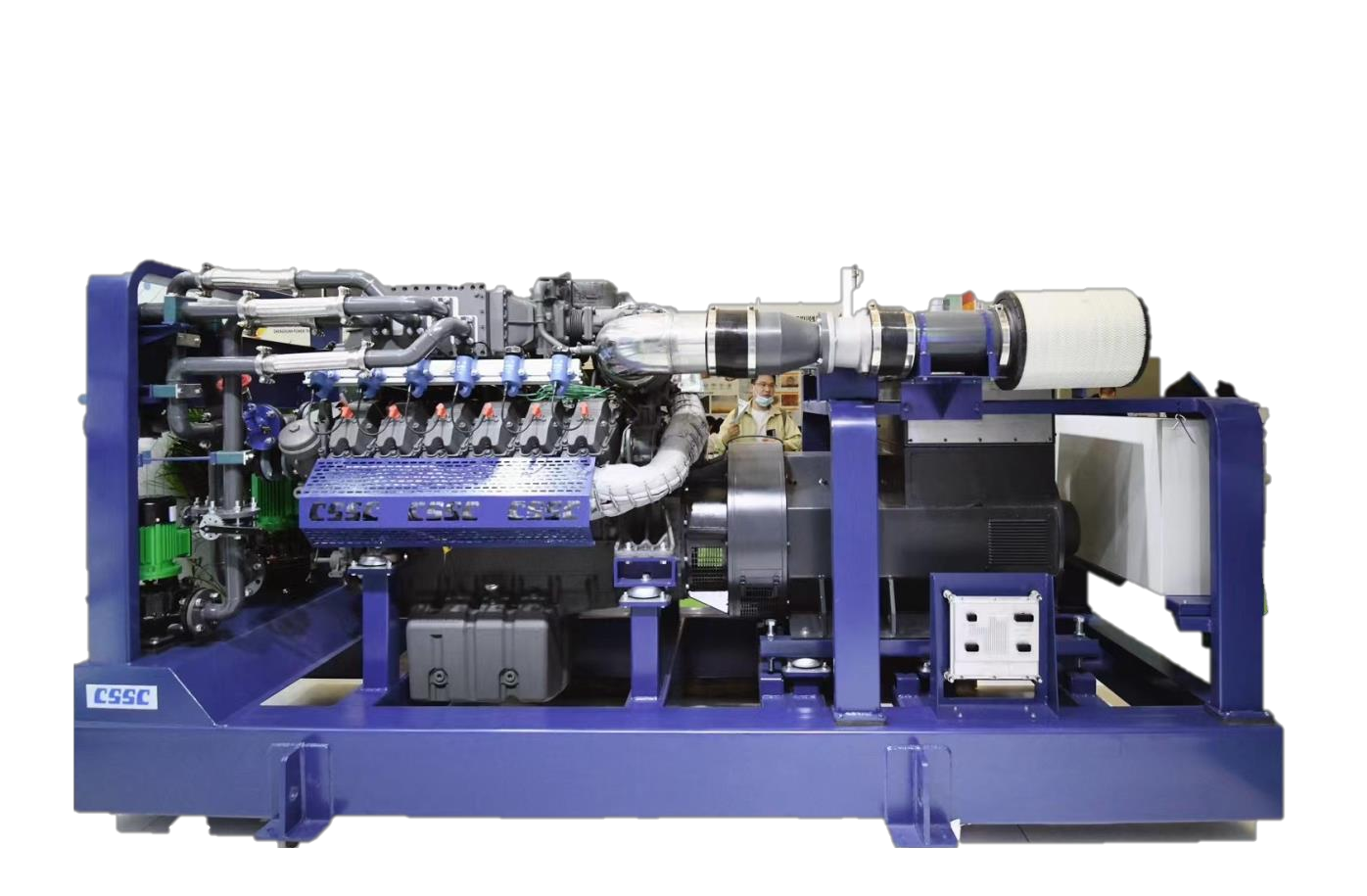

130 series QY12V500GS gas generator set
? High efficiency: power generation efficiency 40.4%
? Reliable: The overhaul period reaches 60,000 hours
? Stable: Advanced technologies such as electronically controlled air-fuel ratio, ultra-thin combustion, pre-combustion chamber spark ignition, etc
? Low emission: ≤500mg
? Low cost: compared with imported brands, the acquisition cost and maintenance cost are effectively reduced
130 series QY12V500GS gas generator set technical parameters
Parameters
UNIT
Number
electric power output
kW
500
Thermal output power
kW
547
Electrical Efficiency
%
>40
Overall efficiency
%
>80
Engine Type
Liebherr G9512 BG
Cylinder diameter/stroke
mm
130/157
Alternator Type
1FC2355N
Rated voltage/frequency
V/Hz
400/50
Control System
SMDERI
BFEP(@100%Load)
bar
16.5
Consumption of lubricating oil
g/kWh
<0.3
Design overhaul cycle
H
64,000
Ambient temperature without power drop
℃
40
Business area - Gas distribution
· Using natural gas as fuel to generate electricity,To achieve cascade utilization of energy, the comprehensive efficiency of more than 80%
· Provide users with cold, heat and electricity,Independent system, improve energy safety and reliability.
· Applicable to hotels, hospitals, industrial parks, etc.Users with stable cold and heat requirements
Business areas - Biogas, landfill gas
· Use biogas to generate electricity, waste heat can be recycled,Compact system, small footprint
· According to the needs of different occasions parallel or grid-connected, can flexibl adjust the power output according to the load demand
· Not only solves the problem of biogas (landfill gas) pollution, but also makes intensive use of resources to turn waste into treasure
