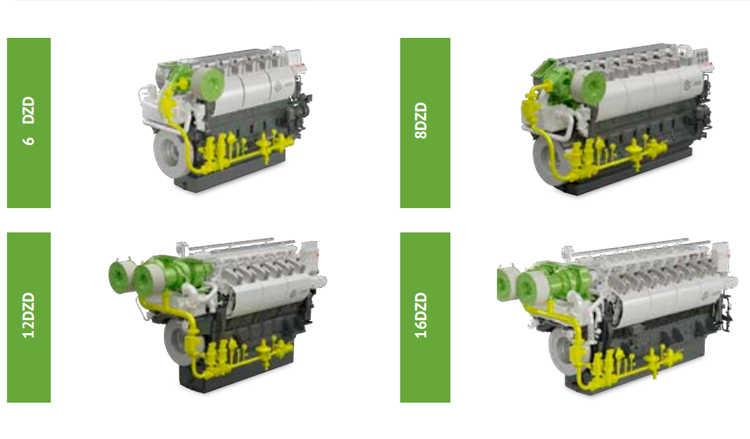

ABC DZD Series Engine
Model
Cylinders
Power
Range
Total Scavenging
Volume
Dry
Weight
Shallow Sump
Oil Capacity
Deep Sump
Oil Capacity
Engine Water
Capacity
6DZD
6
500-1000KW
95.7L
10620KG
450L
615L
205L
8DZD
8
1000-1330KW
127.6L
13905KG
510L
650L
275L
12DZD
V12
1330-2000KW
191.5L
18000KG
800L
900L
500L
16DZD
V16
2000-2670KW
255.2L
21750KG
1000L
1000L
600L
The ABC engine is the medium-speed four-stroke engine designed specifically for mid-to-high-speed vessels and industrial applications, with power ranges
from 600KW to 10,400KW. These engines operate at speeds of 300-1000 rpm and are particularly well-suited for tugboats, dredgers, and other engineering
vessels.The engines have a wide range of applications, including vessel propulsion, land-based power generation, and railway traction. We can provide
comprehensive package services for equipment and spare parts to meet customers' various needs.
Applications:

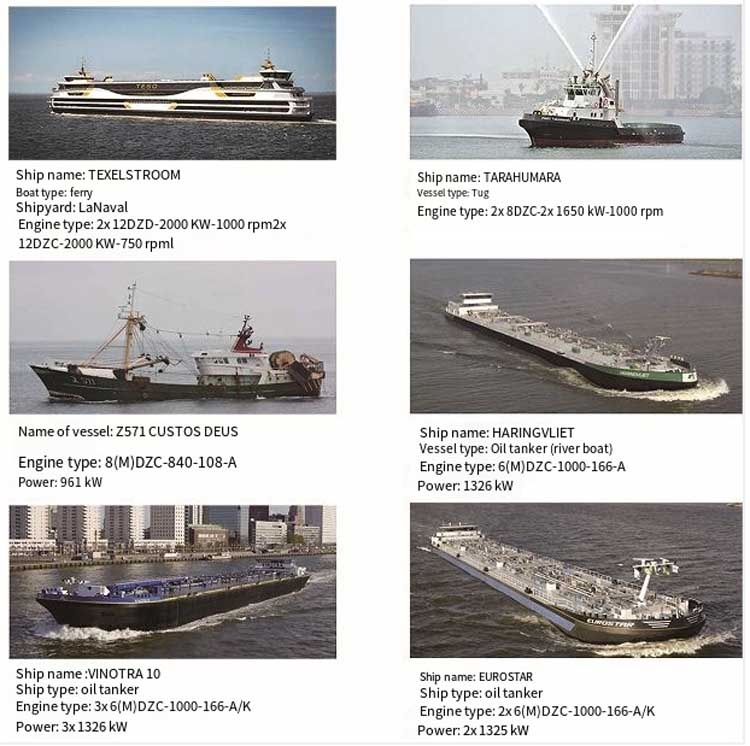

the ship propulsion system:coastal trade ships, ferry, fishing boats, river boat, tug, work boats, etc.
Power generation systems:industrial generator sets, Marine power generation units.
The train traction system, such as: trolley system.
