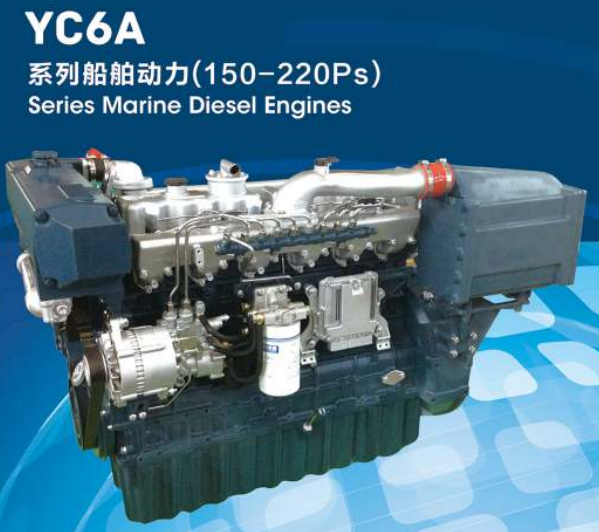

Yuchai YC6A Series Marine Engines
Cylinder block, cylinder head use high strength alloy to cast manufacturing ,better rigid, with integral type crankshaft and sliding bearing ,small volume light weight , high reliability . Overhaul period is more than 10000 hours.
Yuchai YC6A Series Marine Engines Technical Parameter
|
Model |
YC6A 190C/195C |
YC6A 200L/220L |
YC6A 170C |
YC6108ZLCB |
|
Type |
Vertical,Inline,water-cooled,4-stock,Direct injection |
|||
|
Air intake |
Turbocharged &Inter-cooled |
|||
|
Cylinders |
6 cylinders |
6 cylinders |
6 cylinders |
6 cylinders |
|
Continuous |
140/145KW |
145/162KW |
125KW |
112KW |
|
One-hour |
154/160KW |
160/178KW |
138KW |
123KW |
|
Certificate |
ZC,CCS IMO |
|||
|
Net weight |
770KG |
770/750KG |
770KG |
770KG |
|
LxWxH(mm) |
1416x921x1092 |
1340x870x1100 |
1416x921x1092 |
1416x921x1092 |
