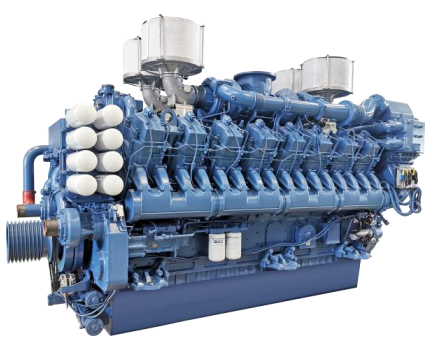

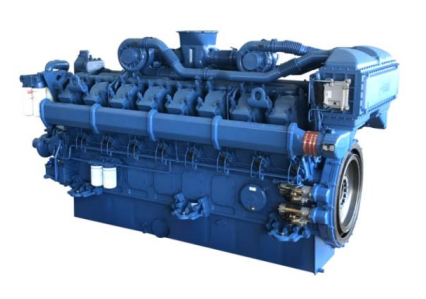

Yuchai YC16VC Series Generator Sets
Based on VC platform modular design and development. High efficiency four supercharger, fast response speed. Electric control unit pump fuel supply system. Meet non-road country III emissions.
Yuchai YC16VC Series Generator Sets Technical Parameter
|
Series |
YC16VC |
|
Common power (kW) |
2005~2673 |
|
Standby power (kW) |
2206 to 2940 |
|
Rotational speed (rpm) |
1500 |
|
Type |
V-shaped,four-stroke,four-valve |
|
Number of cylinders-bore x |
16-200x210 |
|
Displacement (L) |
105.5 |
|
Inhaling method |
Supercharging and intercooling |
|
Fuel system |
Electrically controlled unit pump |
|
Speed control mode |
Electric control |
|
Emission rating |
Non-road Country Ⅲ |
|
Length x width x height mm |
3945x 1644x2218 |
|
Net mass kg |
11400 |
|
Fit the market |
Common:1800~2400kW |
